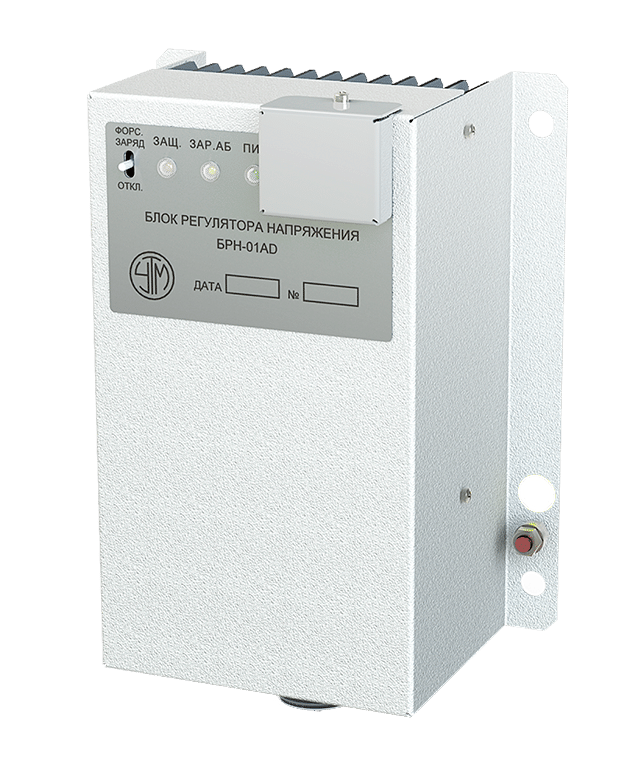

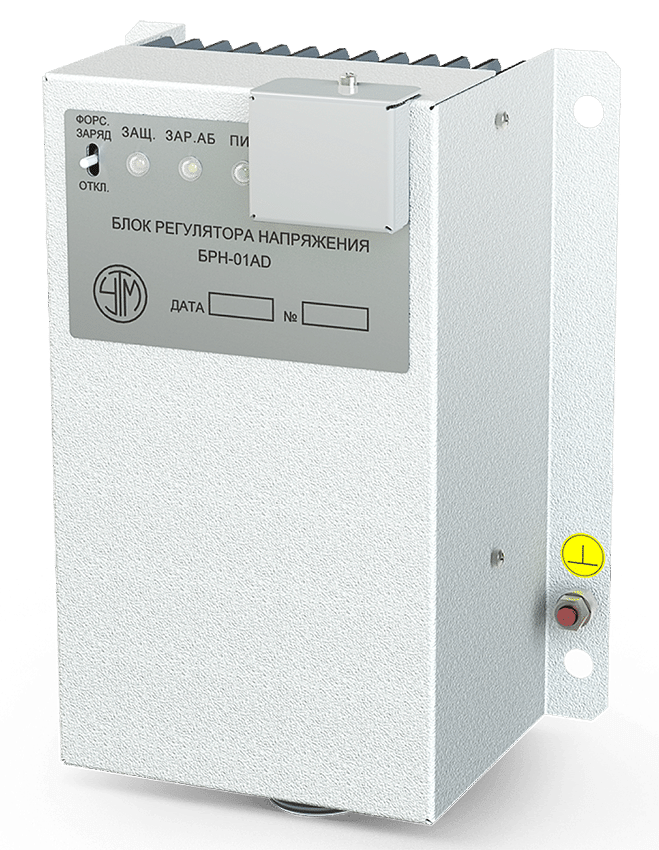

Starter generator
voltage control unit — BRN

Designed to stabilize the voltage of the auxiliary generator (starter-generator) of the locomotive across the entire working range of armature speed and load variation, as well as to limit the current for charging the battery

•

  Nominal value of the voltage
  on the armature of the auxiliary generator

  110V

•

  Voltage maintenance accuracy

  ±1V

•

  The maximum permissible
  output current

  22А

•

  The time for the generator armature
  voltage to rise to a minimum

  3 sec

•

  Operating temperature range

  -30 ... +50 °С

•

  Overall dimensions

  246х168х114 мм
