Passenger boarding/alighting lamp — LLB-02

LLB-02 lamp, LED, dust and moisture protected. The passenger boarding/alighting indicator lamp is designed for installation on the leading cars of electric and diesel trains to assist the locomotive crew in monitoring safe passenger boarding/alighting

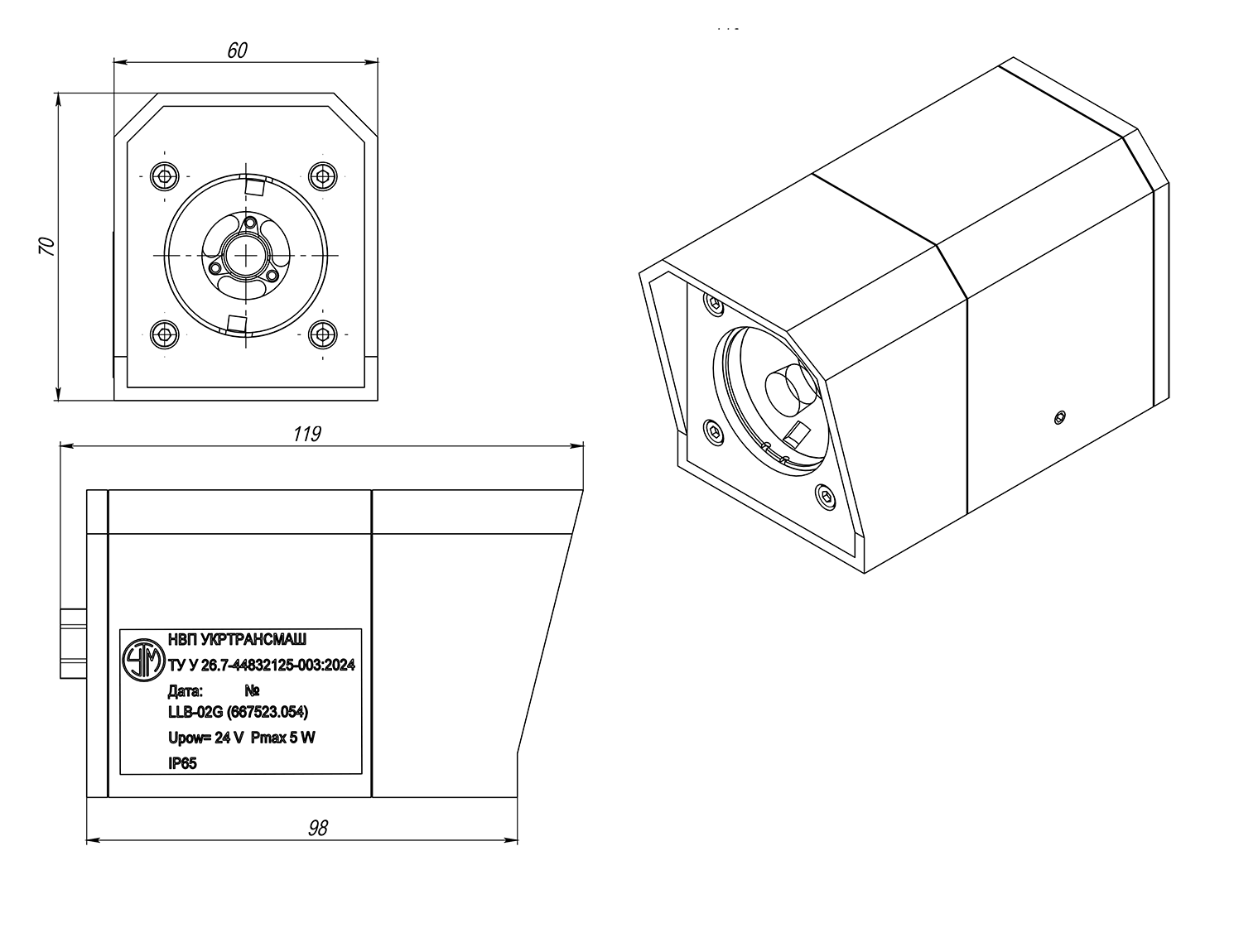

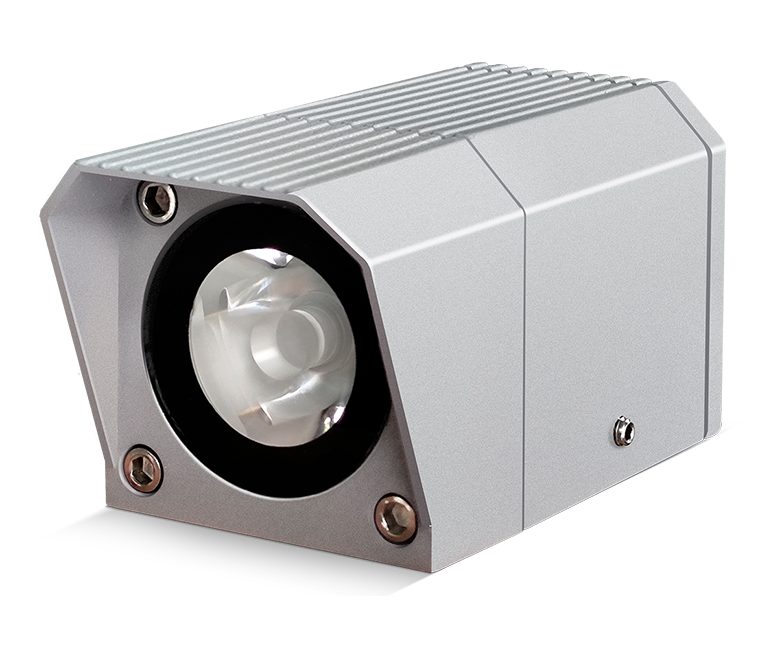

The lamp has a metal cast rectangular housing with beveled edges. On the front side, there is a protective glass, hermetically glued to the housing

The housing contains an indicator module with a white LED and a lens. On the bottom wall of the lamp, there is a cable gland for sealing the internal space of the lamp. Inside the lamp's profile cavity, an LED power converter is installed

On the bottom side, the lamp has a detachable bracket with holes for mounting the lamp to the required surface with screws

For onboard networks over 24V, an external DC/DC converter is used
