Underframe lamp — LKP-1

LKP-1 underframe lamp, LED, dust and moisture protected, designed for illuminating the undercarriage space of locomotives, multiple units, and special railway rolling stock

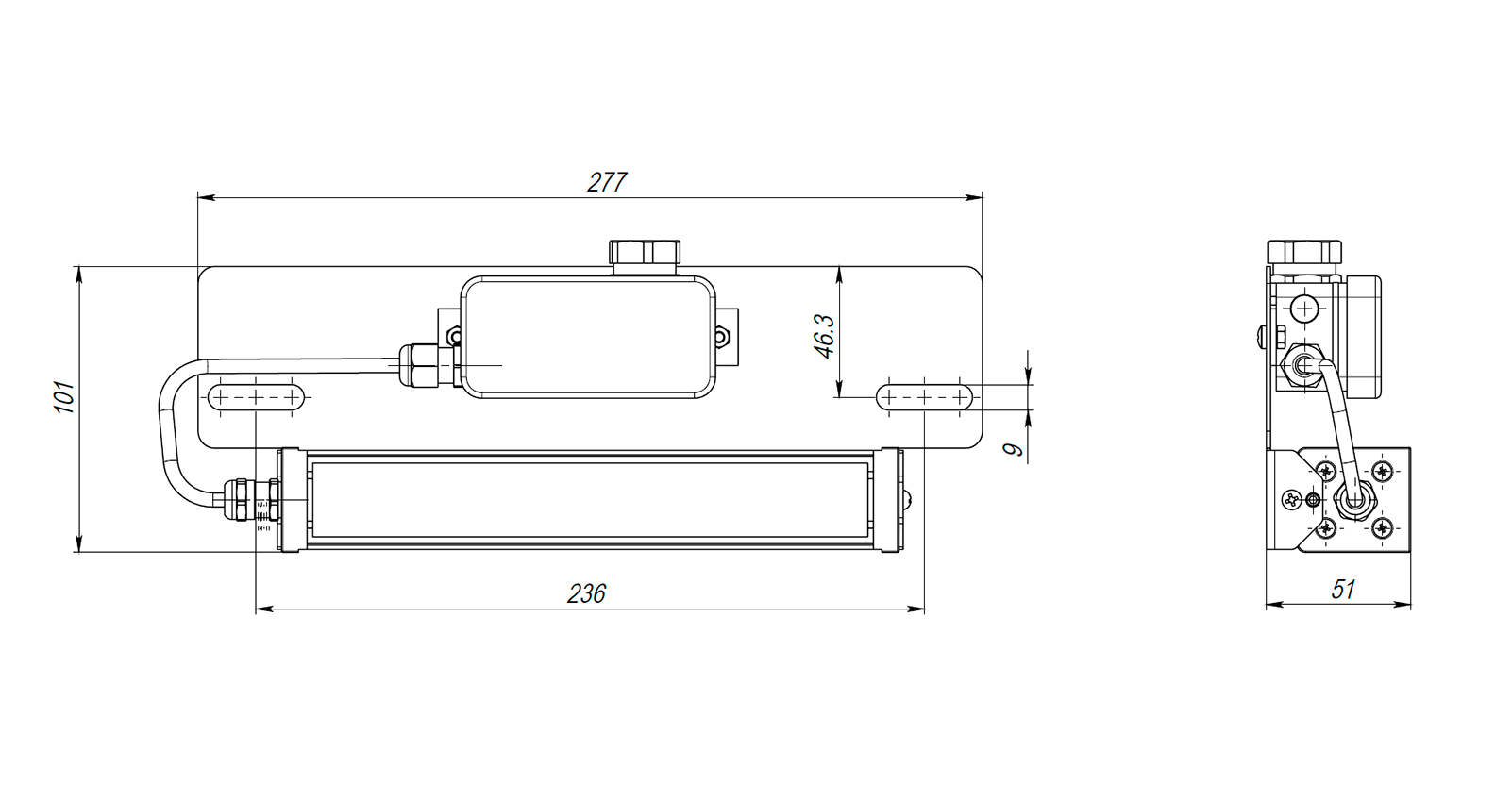

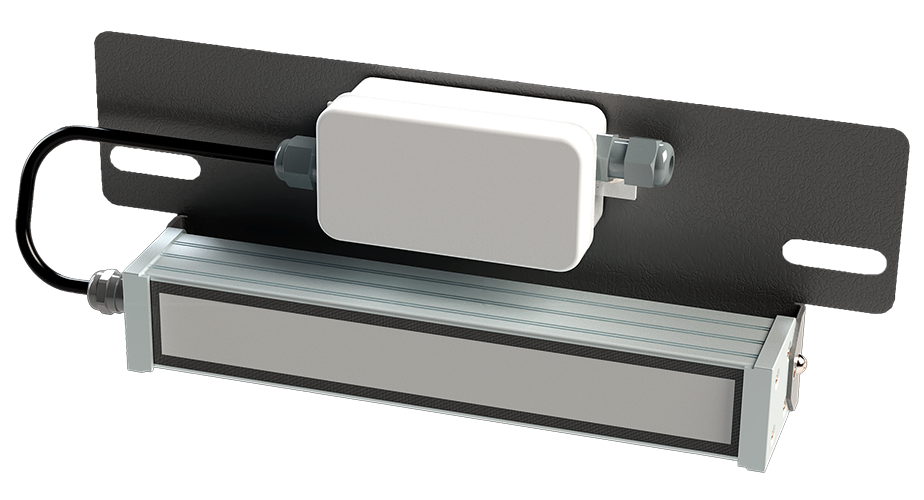

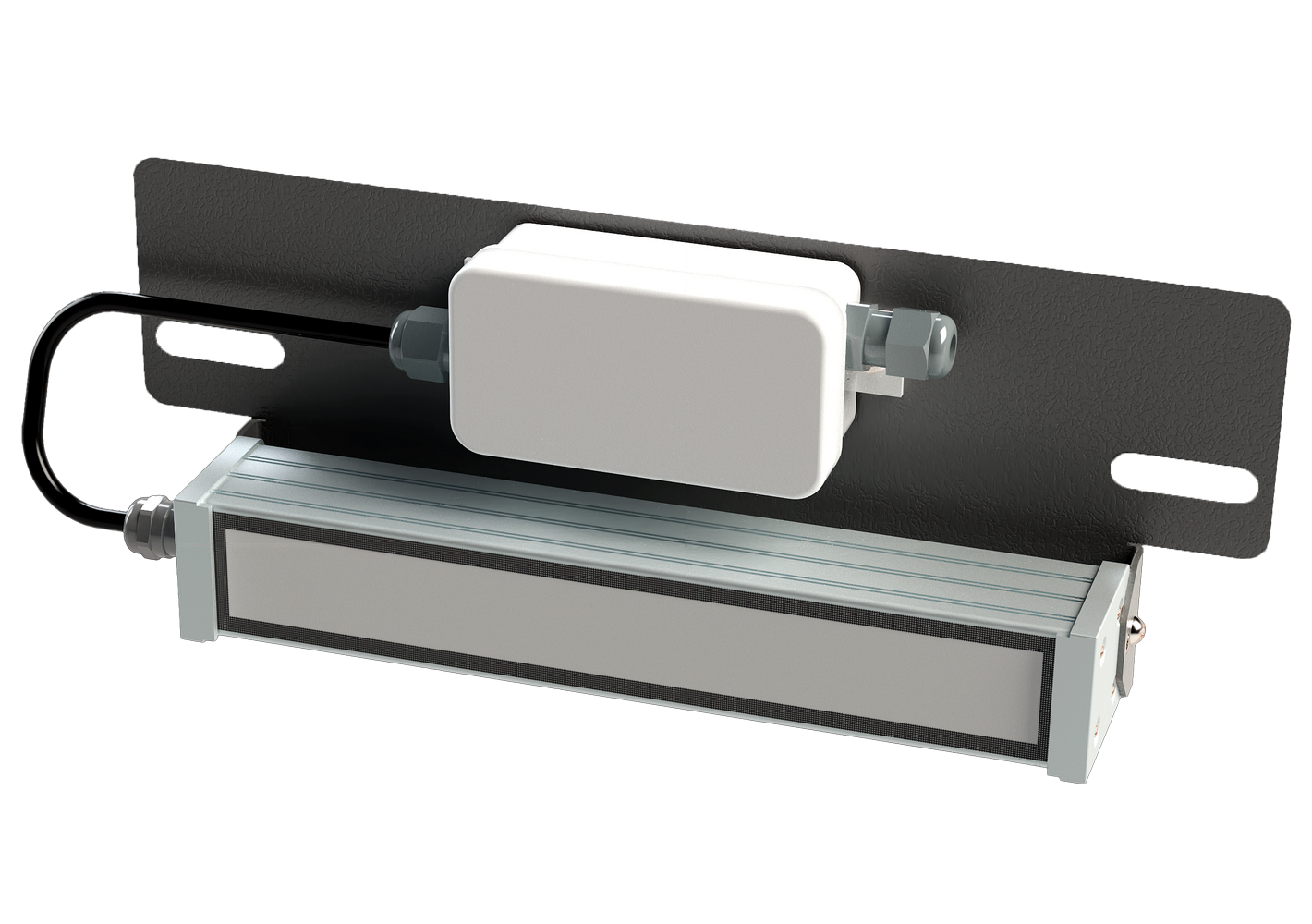

The lamp has a rectangular aluminum housing made from a special profile. On the front side of the profile, there is a protective grille that shields the lamp's glass

A white LED indicator module is inserted into the housing. A cable gland is installed on the side wall of the lamp to seal the interior space. Inside the lamp's profile cavity, an LED power converter is installed

The lamp has brackets on the ends for mounting to a surface with four screws
