Buffer light
bicolor — LWR-1

The LWR-1 buffer light, a two-color, dual-channel device, is designed for signal lighting of locomotives, multiple units, and special railway rolling stock

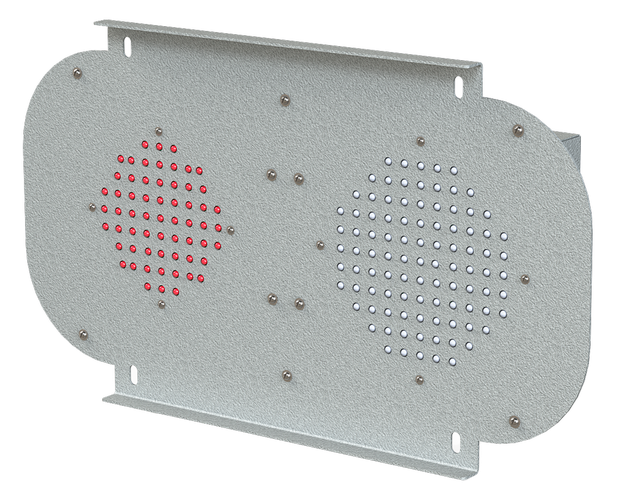

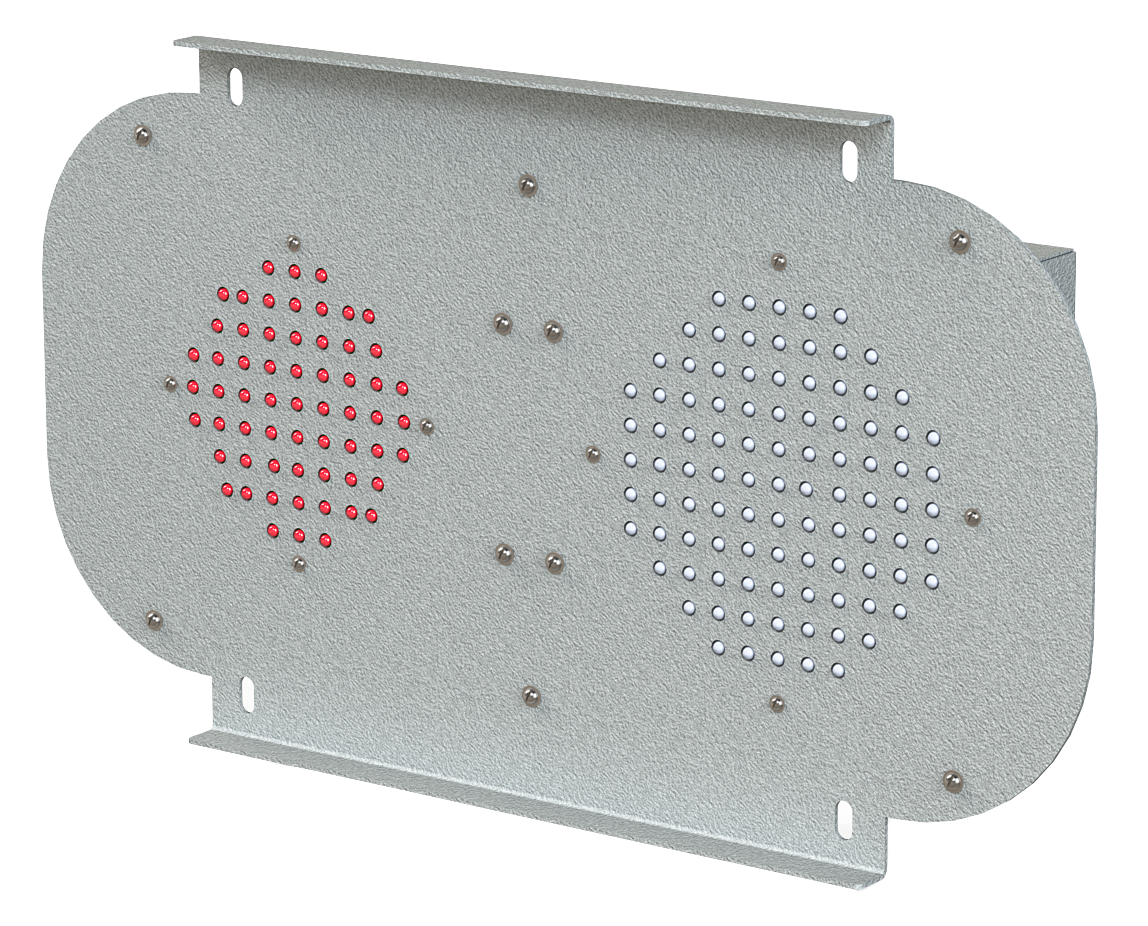

White and red glow color display modules are attached to the steel front panel. Behind the white glow module is the lantern's power converter

In the rear part of the lamp there is a WAGO connector for connecting to the electrical circuit of the locomotive. A steel cover covers the back of the structure. There is a screw for grounding the structure on the cover

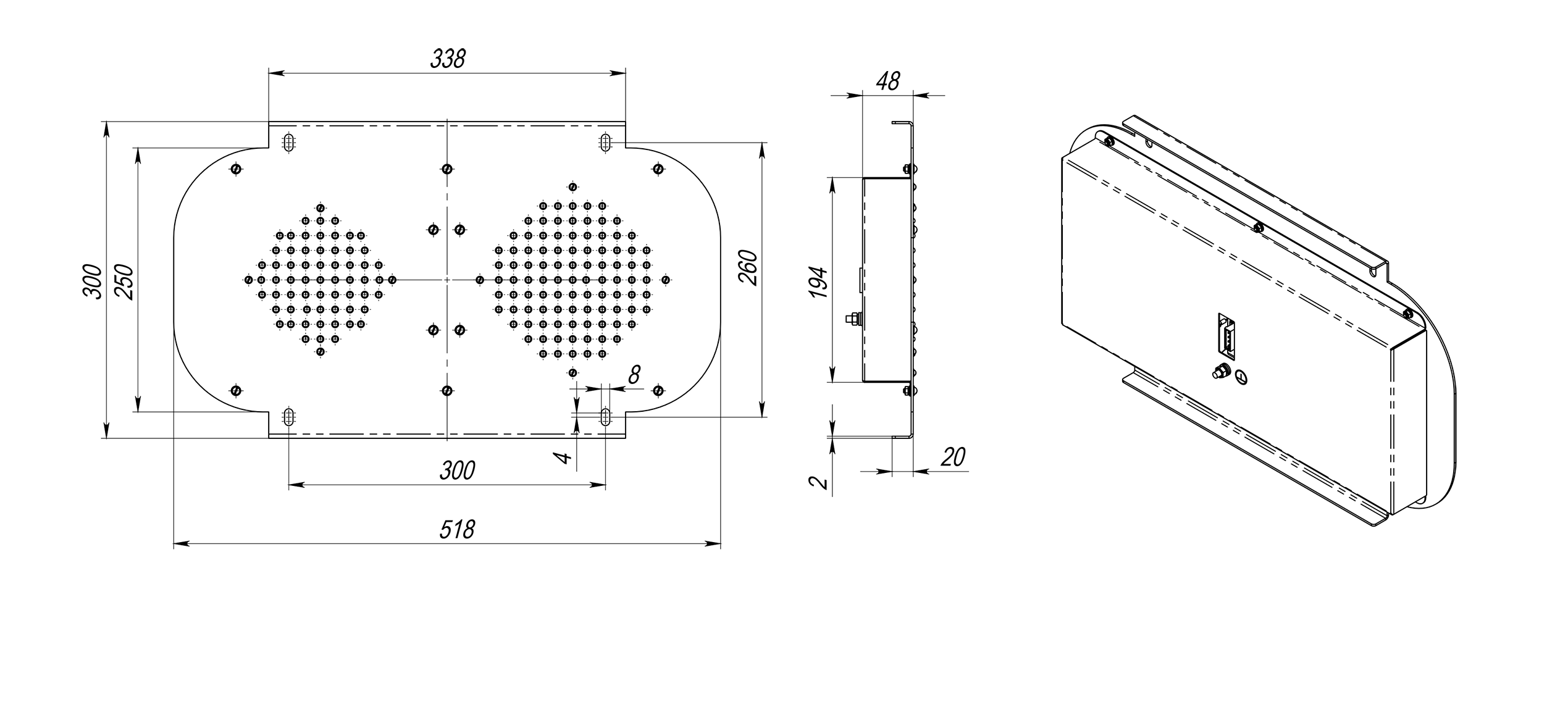

Above and below the front panel, oval holes are made for fixing the lantern on the locomotive body. Mounting to the body is carried out using screws with a diameter of 6 mm
