Locomotive headlight
— SLR/18

BRIGHT 500000 cd DIM 100000 cd

Description

SLR/18 LED locomotive headlight is designed for track and, where applicable, contact wire illumination in front of the locomotive or diesel/electric train

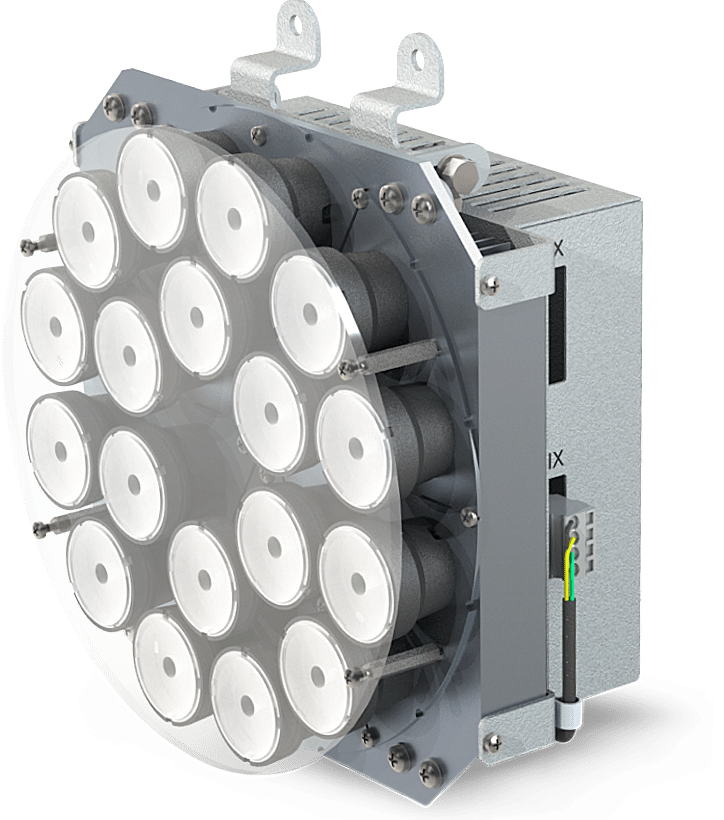

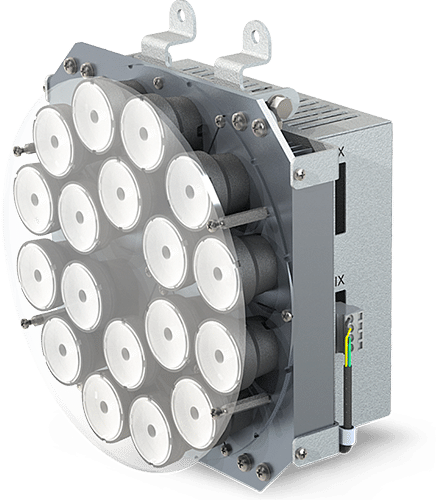

The headlight consists of a case and a bracket on which it is installed. The case consists of display modules, radiators, power supply and mounting brackets

The display modules with LEDs and focusing lenses installed on them are attached to aluminum radiator plates, the back of which has fins. At the front, the lenses are covered by a mask with polycarbonate glass for protection during installation and operation. Behind the radiator, the power source of the headlight is attached to the brackets, covered by a protective cover. On the side of the casing, in the holes, there are removable connectors for connecting to the electrical circuit of the locomotive and for powering the floodlight LEDs

Fastening to the locomotive body is performed using brackets located above and below the headlight (Img 1). In another embodiment, the floodlight housing is mounted on a swivel bracket (Img 2). On both types of brackets there are adjustment bolts for setting the position of the headlight in the longitudinal and transverse planes, with the help of which you can set the direction of the light

01.

Technical characteristics

Quantity of LEDs: 18
The angle of illumination: 4°
Lighting modes: 2
bright / dim
Light power:
- bright: 500000 cd
- dim: 100000 cd
Supply voltage: 110V/50V/24V
Type of current: direct
Power consumption: 60 W
Protection level: IP20
Overall dimensions:

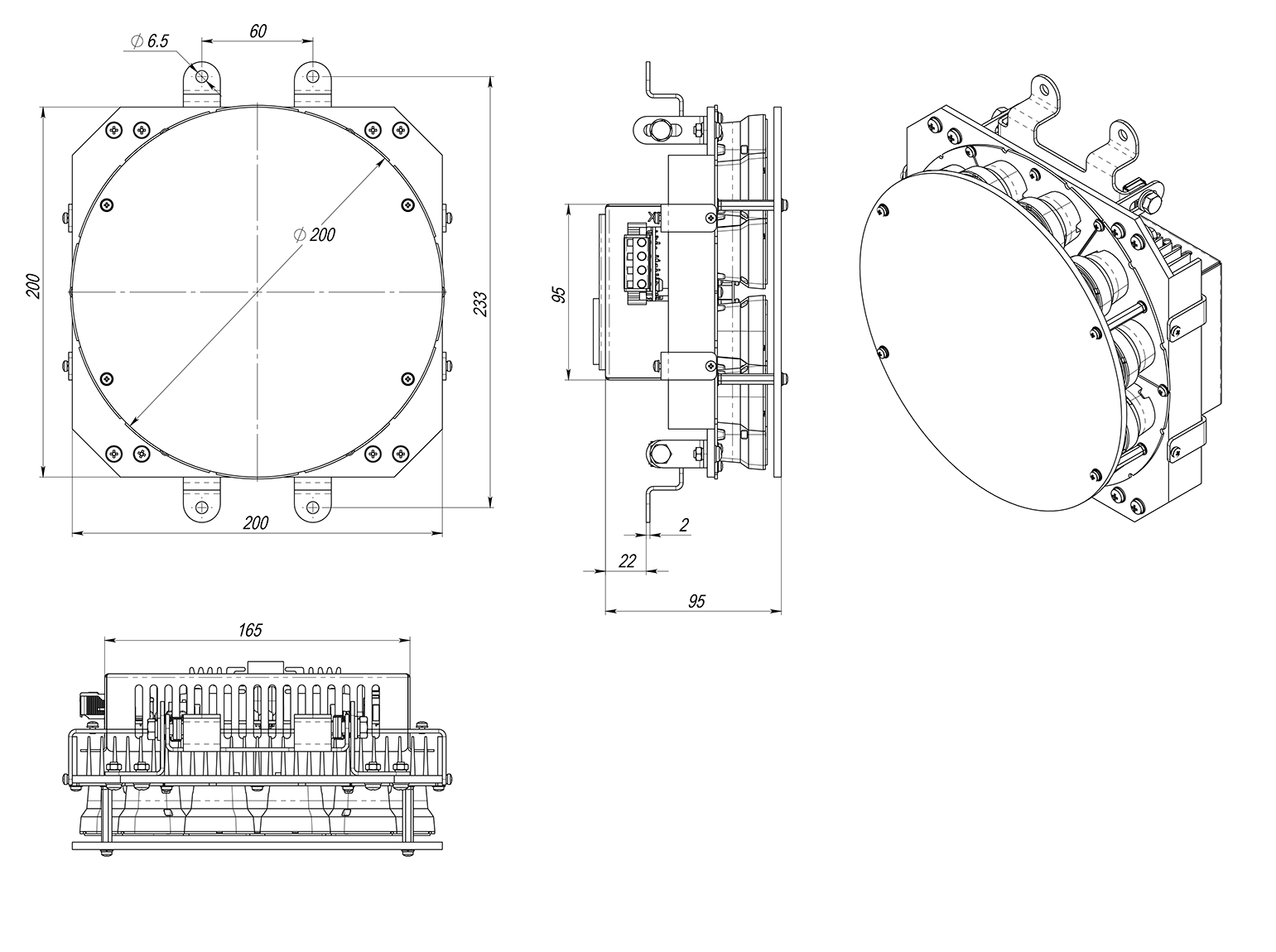

- SLR-5/18

  200x200x95 мм

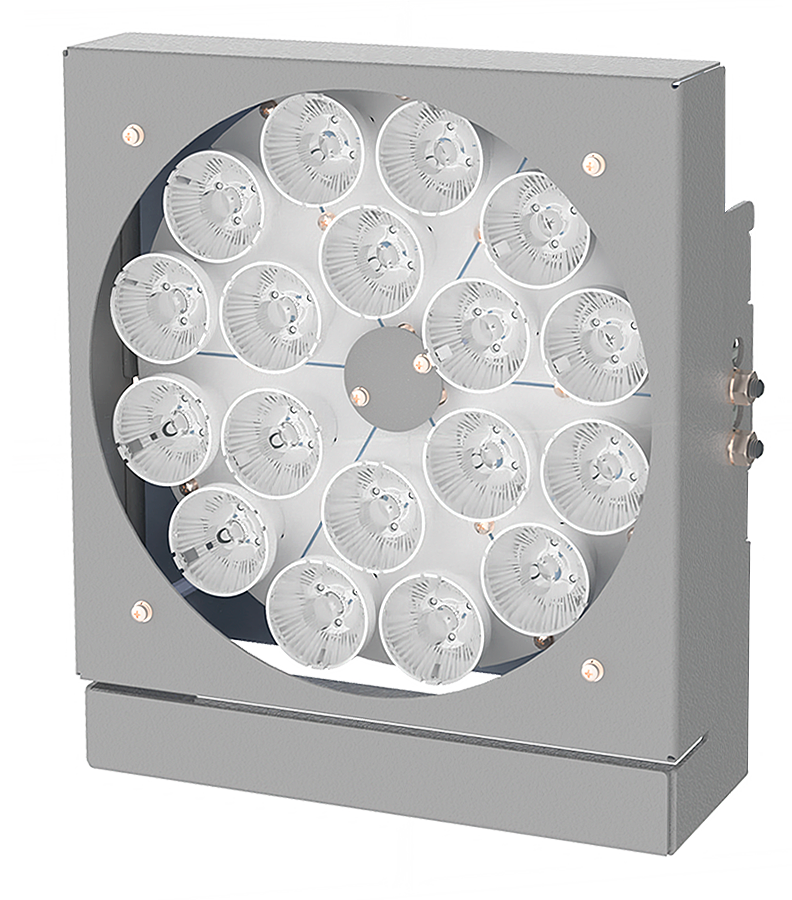

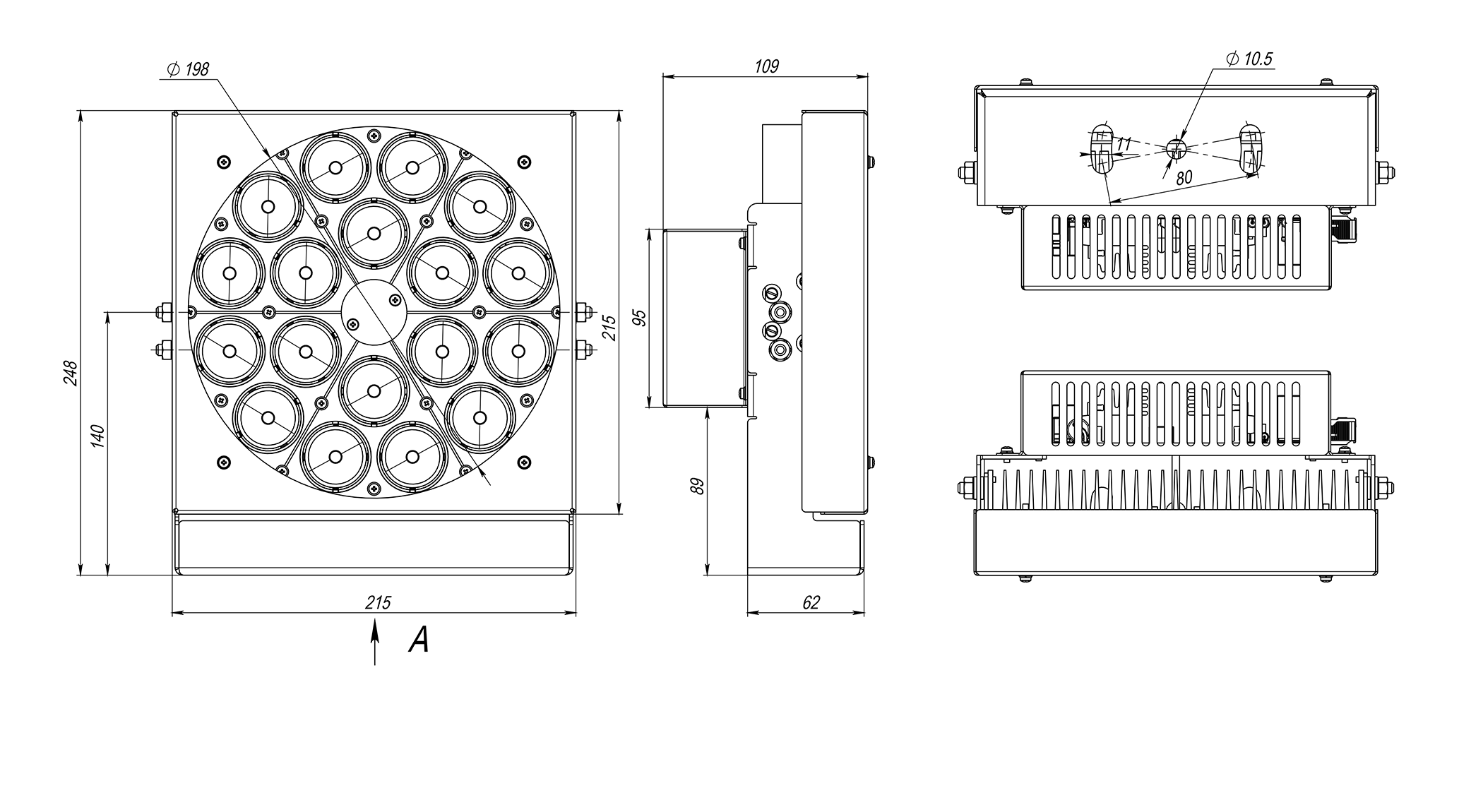

- SLR-5/18-01

  248x215x109 мм
Dim light is provided by reducing the luminous flux due to reducing the current of all LEDs, and not due to their disconnection

02.

Modifications

Assignment
SLR-5/18

ТЕМ2, ТЕМ7, ТGМ4, ТGМ6
SLR-5/18-01

ТЕМ2, ТЕМ7, ТGМ4, ТGМ6
