Buffer light
white — LW-160

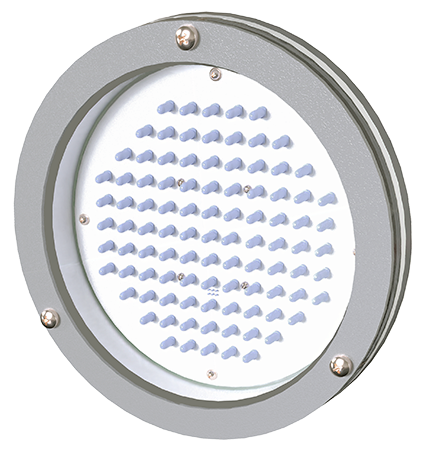

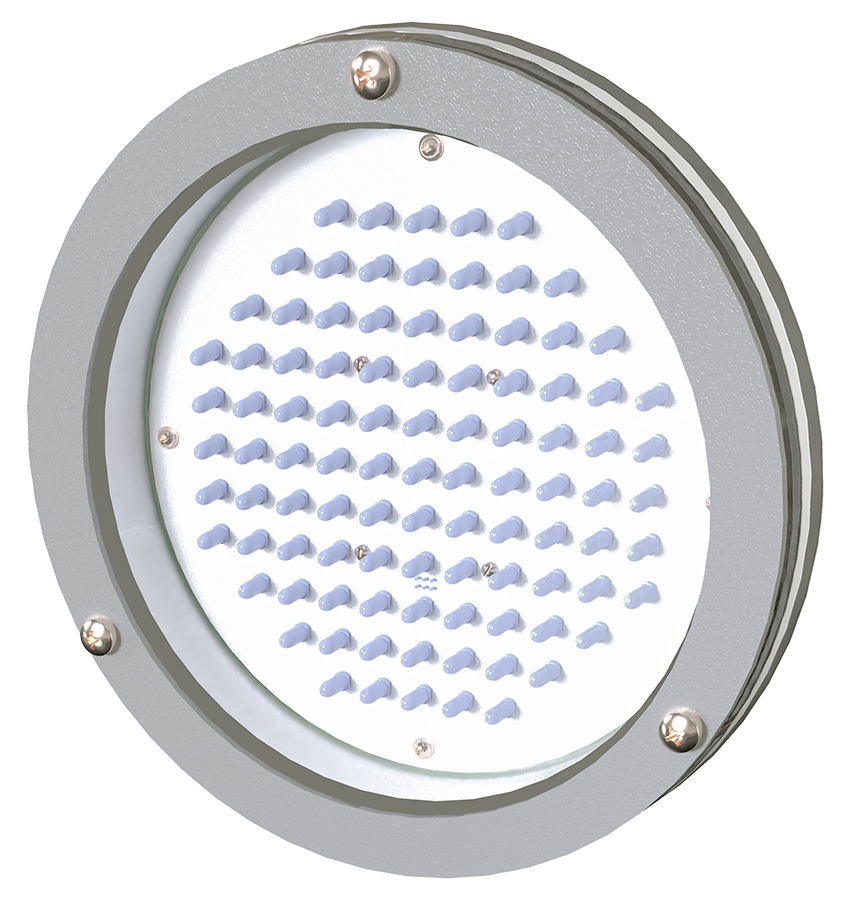

The LW-160 buffer light is designed for signal lighting of locomotives, multiple units, and special railway rolling stock

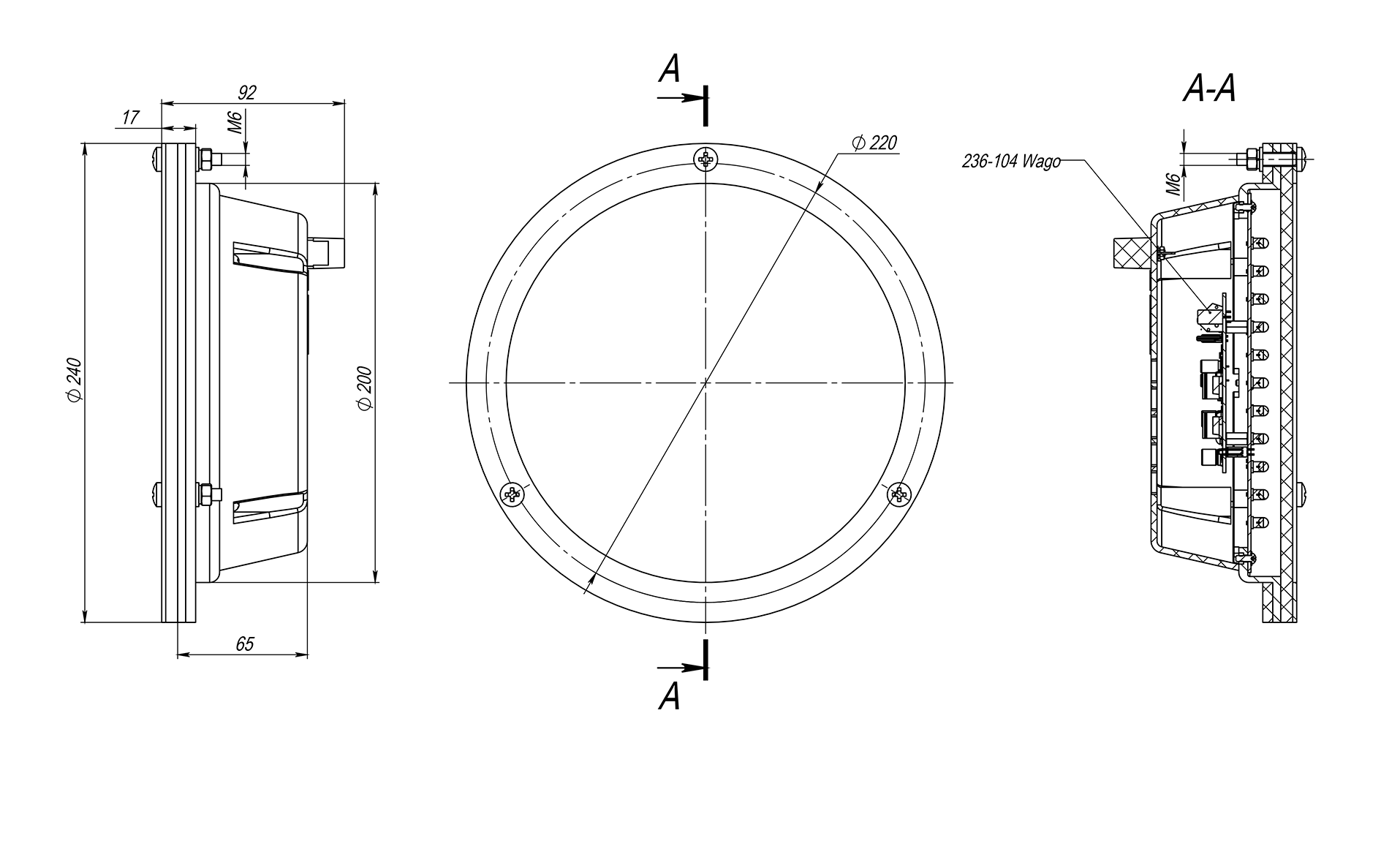

The lantern has a cylindrical steel body. The body is painted with gray powder paint. An indication module with white light-emitting diodes is inserted into the case

A power converter is installed behind the display module. On the rear wall of the lamp, screw terminals are installed: 3-pin for connecting to the electrical circuit of the locomotive, 2-pin for connecting to the red buffer lamp LR-120/16. There is a screw for grounding the structure on the back wall

On the front side, on the flange part, a polycarbonate protective glass is installed, hermetically glued to the case. From above, the glass is covered with a steel washer, which is fixed with three screws. These screws are also used to attach the lantern to the locomotive body

A rubber gasket is used under the body pressing surface
