Auto door lamp — LKV-01

LKV-01 lamp, LED, dust and moisture protected, designed for safe passenger boarding/alighting from diesel and electric train cars during nighttime

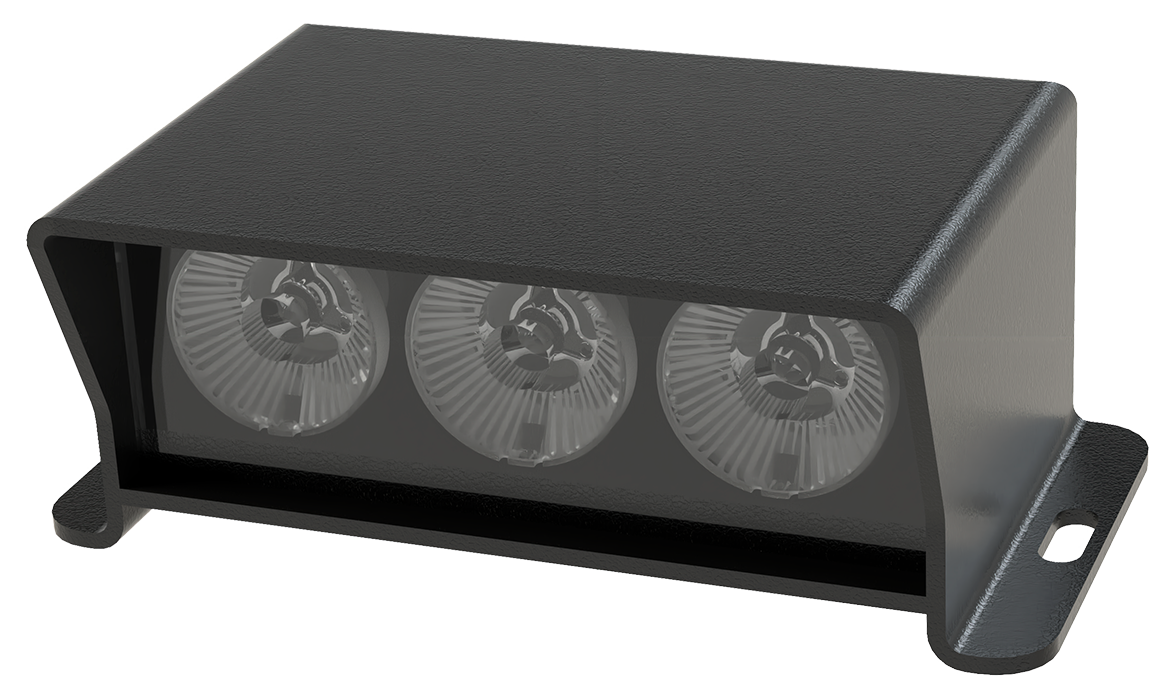

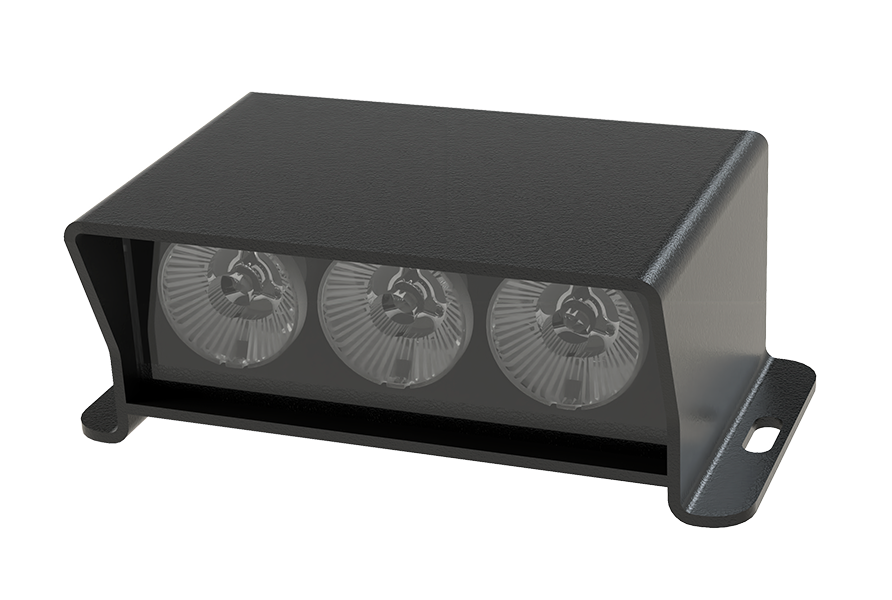

The lamp has a rectangular steel welded housing with mounting holes. On the front side, there is a protective glass, hermetically glued to the housing

The housing contains three indicator modules with white LEDs and lenses. On the bottom wall of the lamp, there is a cable gland for sealing the internal space of the lamp. Inside the lamp's profile cavity, an LED power converter is installed

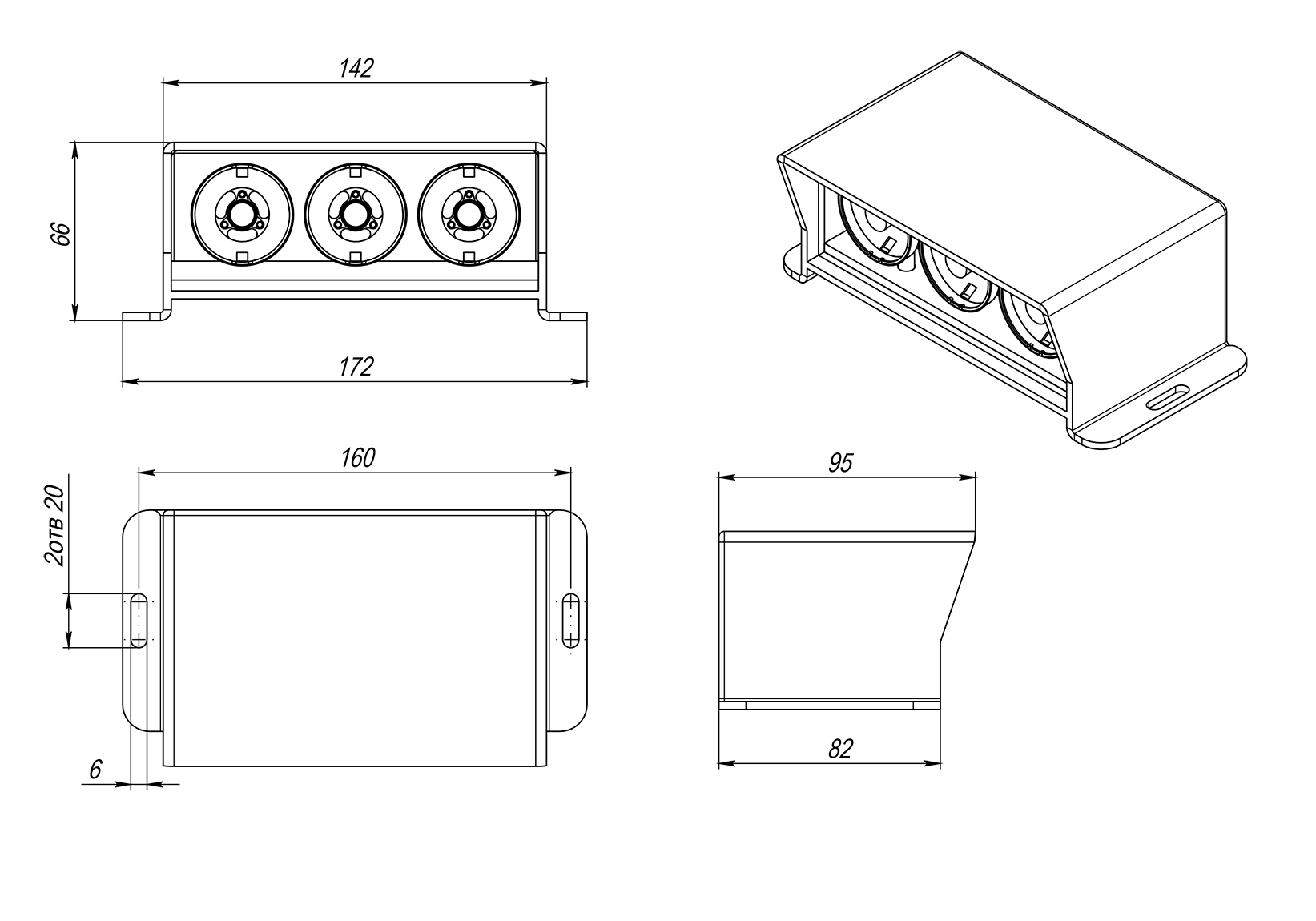

The lamp has brackets on the sides with holes for mounting the lamp to the required surface with two screws

For onboard networks greater than 24V, an external DC/DC converter is used
