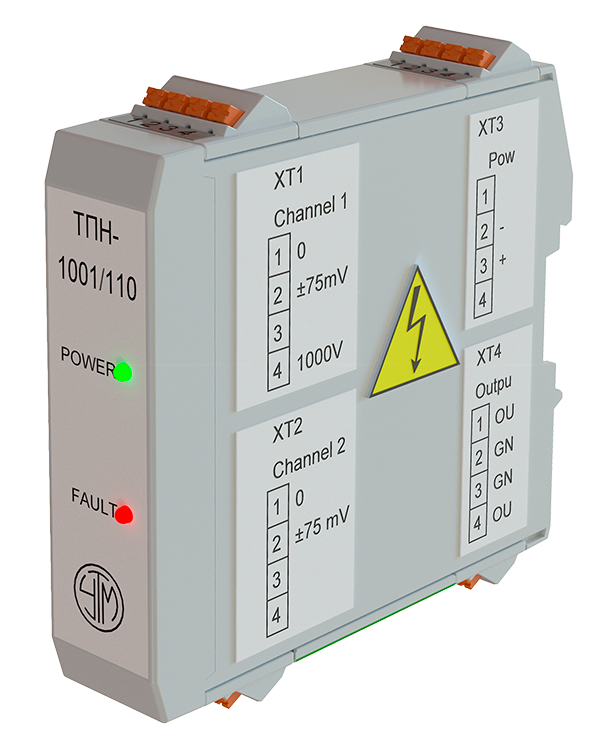

Transport voltage converter — TPN 1001
Device function
The TPN-1001 voltage converter is designed for galvanic isolation and conversion of the primary voltage signal into a proportional output signal for processing in measurement and control circuits
Technical
characteristics
-
Supply voltage:
- onboard network
24…110 V
- current
direct
-
Number of channels for conversion
2
-
Nominal input voltage range
for channel 1:- input 1
75 мV
- input 2
1000 V
-
Nominal input voltage range
for channel 2:75 мV
-
Inputs of channels 1 and 2 are bi-wired
-
The outputs of channels 1 and 2 are galvanically isolated from the input signals and form a common ground point
-
Transfer characteristics of the reversal channels: Uout = К і |Uin|, where і is the transfer coefficient for the i-th input. When changing the polarity of the input voltage, the polarity of the output voltage does not change
-
Nominal output voltage
at rated DC input voltage5 V
-
Main theft, %, no more
1,0
-
Additional reduced error for each factor of operating conditions (temperature, external electromagnetic field, humidity), %, no more
0,5
-
The amplitude of the high-frequency ripple of the output signal at the nominal input voltage, no more
20 мV
-
Frequency of high-frequency pulsations of the output signal, at least 5 kHz
-
Passband for a sinusoidal input voltage (with uneven amplitude-frequency characteristics no more than 3 dB)
0…5000 Hz
-
Phase shift of the sinusoidal output signal in relation to the input signal at a frequency of 400 Hz, no more
20 degrees
-
Load resistance of the converter, no less
1000 Ом
-
The power consumed by the converter from the power source is no more
1,5 W
-
The input resistance of the converter
- at the input «1000 V»
2150 ±0,5% кOhm
- at the input «75 мВ»
0,162 ±0,2% кOhm
-
The mass of the converter, no more
0,5 kg
-
Overall dimensions
- length
155 мм
- width
72 мм
- height
112 мм
