Illumination of the driver's console — KSPR-2

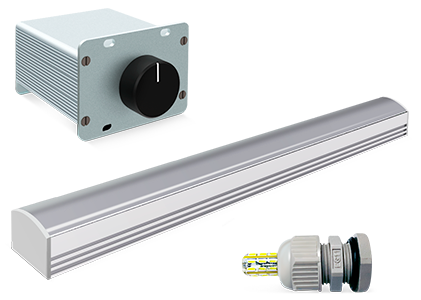

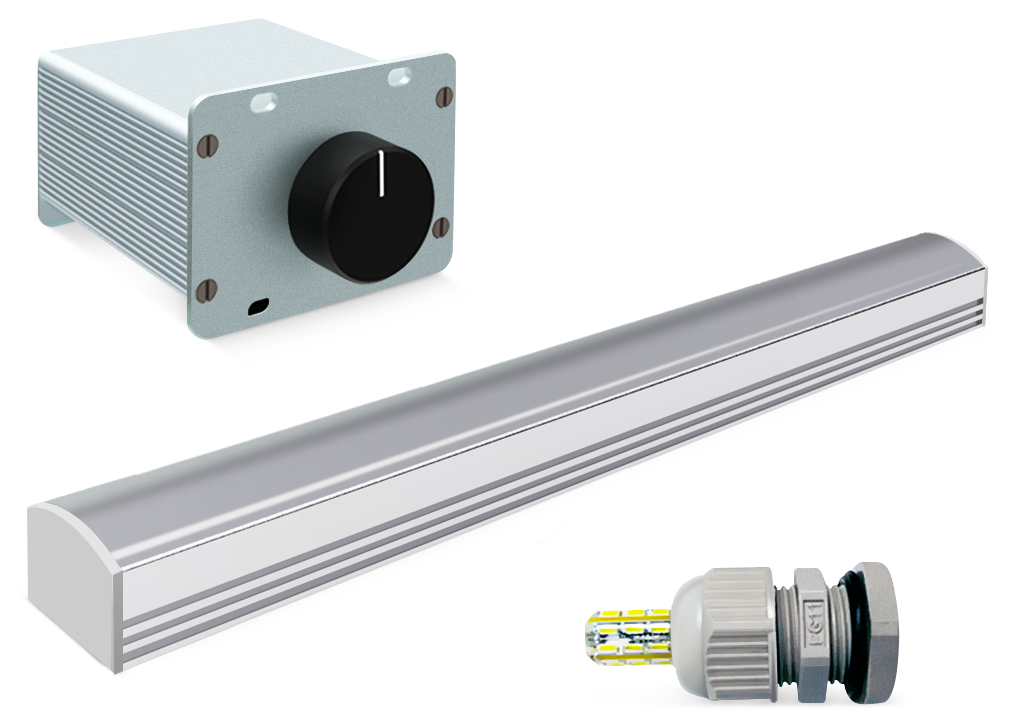

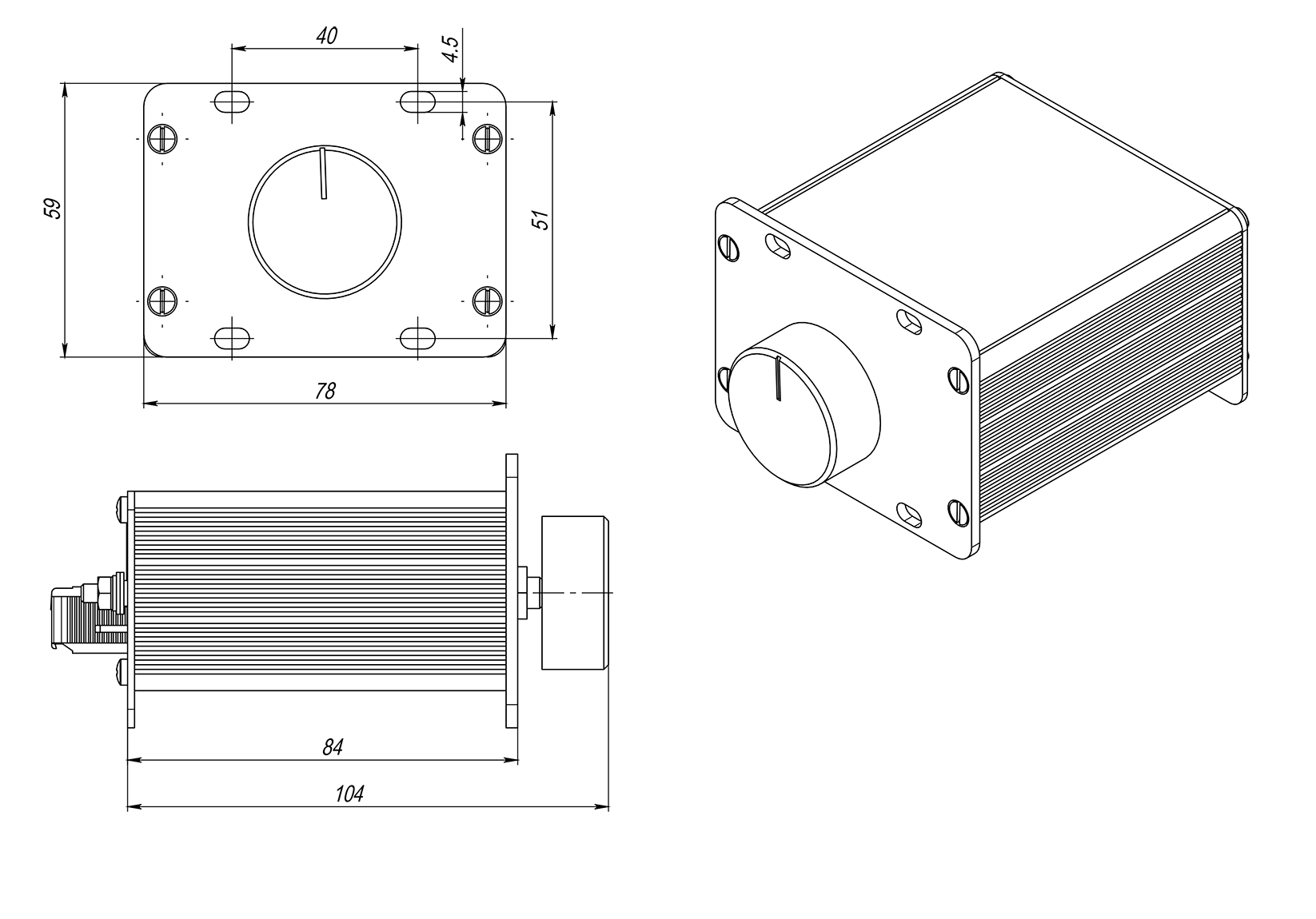

A set of lamps for illuminating the driver's console with a brightness regulator, LED, intended for lighting the driver's console of diesel locomotives, electric locomotives, motorcars and special rolling stock of railway transport in the dark. The brightness regulator RPP-2 is equipped with one of two types of lamps

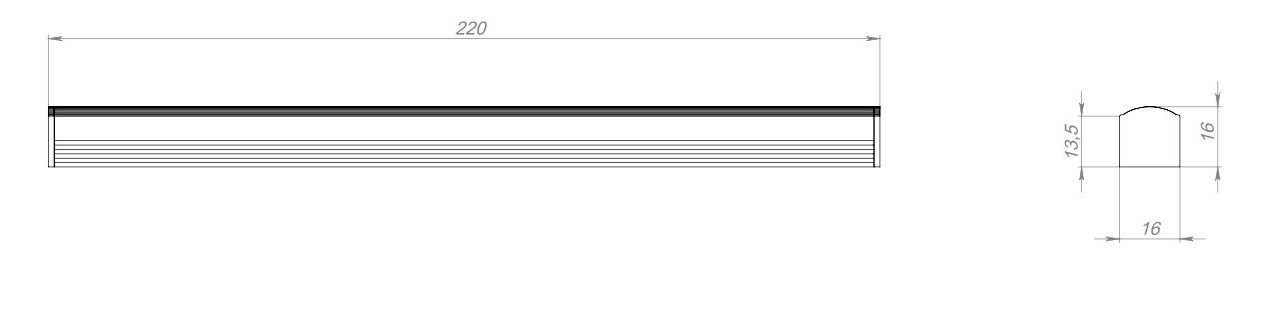

The LPP-220 lamp has a rectangular aluminum case made of a special profile. From the front side of the profile frosted protective polycarbonate glass is installed. An indication module with white LEDs is inserted into the housing. Plugs are inserted into the profile from the sides. At the back, the lamp has brackets with holes for attaching the lamp to the required surface

The LPP-G4 lamp consists of an LED lamp inserted into a G4 type connection socket. A PG11 cable gland is used for mechanical fastening and surface mounting. To connect the lamp to the power source, two wires up to 300 mm long are provided. The polarity of the connection of the lamp is arbitrary
